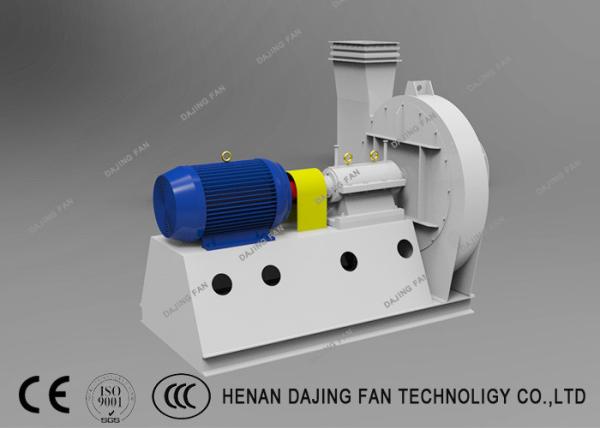

Low Noise Cement Plant Forced Draft Fans For Boiler High Pressure High Voltage
The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.
| Low Noise Cement Plant Forced Draft Fans For Boiler High Pressure High Voltage |
| Centrifugal fan | Air Flow | 6000~41500 | m3/h |
| | Pressure | 3500~1500 | Pa |
| | Rotating speed | 2900/1450/960 | r/min |
| | Material | Carbon steel | |
| Motor | Power | 7.5~410 | kw |
| | Voltage | 220/380/440/6000/6600 | v |
| | Frequency | 50/60 | hz |
Feature
1. Centrifugal fans can convey air and other non-hyperbolic gas which are not harmful to the human body and will not corrode steel and iron materials.Centrifugal fans with Compact structure.It is applicable for the indoor ventilation and air exchange to the common factories and architectures.
2.The impeller will do by dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
3. The adhesive materials are not allowed in the gas.Transportation gas temperature at -20℃ ~ 200℃.The fan performance be test by airway or AMCA both available, the fan performance data is truth and reliable. Its containing dust and hard particles should not exceed 150mg/m³, gas temperature not exceed 80°C.
Application
1. For transport gerneral gas, the gas should not contain any sticky substances, which the dust or solid particles should less than 100mg/m³.
2. For equipments or system of filtration & drying, fume hood & spray booth, paiting room,food processing , kitchen room and so on.
3. Ventilation (supply or exhaust) system and industrial(HVAC) applications where moderate capacities at low pressures are required such as building, air-conditioning,firfighting, air circulation orcooling and so on.
Centrifugal fan production process:
Case Show:
